Web proxy is a service that is placed between a client and the internet for HTTP web surfing. It can cache certain contents / http pages in its local cache. Mikrotik have basic PROXY package builtin called WEB PROXY. It is suitable for basic caching for small to mid size networks.
For advance caching capabilities, Use 3rd party external proxy server like SQUID.
MikroTik WEB.PROXY Recommendation
Always try NOT to use the same storage disk to store your your cache and your your Router OS, to ensure there is always enough space on your router OS Disk for logs, upgrade / update packages & Backups. Therefore It is highly recommended that the web-proxy cache is stored on a physically separate drive (store) other than the Router OS. Placing the cache on a separate drive ensures maximum performance and reduces problems if the disk becomes full or fails as the OS will then still be OK!Caching Internet access will require a lot of read and writes to the disk, chose fast disk as for maximum performance / concurrent user request support.
Cache performance also largely depends on RAM size, the More RAM you have in your server, the Better performance you will get.
We will divide this article in 3 Sections.
1# Preparing Secondary Partition for Cache
2# Configuring Web Proxy
3# Transparent Proxy
Let’s BEGIN . . .
1# Preparing Secondary Drive for CACHE
First we will Format secondary harddrive (to be used for cache ), IF YOU DON’T WANT TO USE SECONDARY HARD-DIVE, SKIP THIS STEP.Goto SYSTEM > STORES > DISKS
Select the Secondary Hard drive and click on FORMAT DRIVE
As shown in the image below.
.

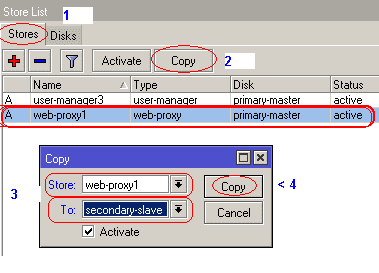

Now go to STORES tab (by navigating to SYSTEM > STORES)
Select the WEB-Proxy package and click on COPY
It will ask you where to copy WEB-Proxy package, Select Secondary Drive in TO box.
As shown in the image below.
2# Configuring Web Proxy
Now We have to Enable Mikrotik Web Proxy by navigating toIP > WEB PROXY
As shown in the image below.
.
Now Click on “Enable”
in Port, Type 8080
Max Cache Size , Select Unlimited from drop down menu, OR if you have limited Disk Space, then use your desired amount.
You have to specify space in KiloBytes for example 1024 KB = 1MB , so if you want to set 5 GB Cache, then use 5242880 , I am using 5 GB in this example. The cache size is really based off of how much RAM you have in the machine
As shown in the image below . . .
.
Click on Apply and your Mikrotik’s Web Proxy is Ready to be used, But Every client have to set proxy address pointing to Mikrotik IP to be able to use Proxy Service.
3# Transparent Proxy
If we want that every user must be automatically redirected to Proxy transparently, then we have to create additional rule to forcefully redirect users to proxy service, which is called TRANSPARENT PROXY..
Goto IP > FIREWALL > NAT and create new rule
In Chain , Select dsntant,
In Protocol, Select 6 (tcp)
In Dst. Port, Type 80
As shown in the image below . . .
.
Now goto Action Tab,
In Action, Select redirct
In To Ports, Type 8080
As shown in the image below . . .
.
Now your newly created rule will look like something below image.
As shown in the image below . . .
OR the CLI version of above rule would be something like below.
1
| /ip firewall nat add action=redirect chain=dstnat disabled=no dst-port=80 protocol=tcp to-ports=8080 |
You can View Proxy Status and other info via going to IP > WEB PROXY > SETTINGS > STATUS and other tabs in the same window.
As shown in the image below . . .
=========================================
WEB-PROXY Tips ‘N’ Tricks !! by Zaib (December, 2011)
=========================================
.
Howto Send CACHED Contents to user at Full Speed / Ignoring QUEUE Limit for cached-hits marked packets
First Mark Cached Contents by MANGLE Rule.
1
2
3
| /ip firewall mangleadd action=mark-packet chain=output comment="CACHE HIT/Zaib" disabled=no dscp=4 \new-packet-mark=cache-hits passthrough=no |
1
2
3
4
| /queue treeadd burst-limit=0 burst-threshold=0 burst-time=0s disabled=no limit-at=0 \max-limit=0 name="Unlimited Speed for CACHE by zaib" packet-mark=cache-hits \parent=global-out priority=8 queue=default |
http://www.rarlab.com/rar/wrar410b5a.exe
Once Downloaded, Try to download it again from any other computer or via same test pc. You will see the Queues and rules in action, sending cache-hits packets to users at full LAN speed.Remember Mikrotik web proxy is very basic and simple proxy server with not much tweaks and nuts ‘N’ Bolts to set, So it will cache what it can. For advancements, Use SQUID instead.
As shows in the image below . . .
.
Also you can view the cache contents via going to IP > WEBPROXY > CACHE CONTENTS
As shows in the image below . . .
Howto Block Web Sites by Domain Name
You can block any web site via domain name as shown below.
1
2
| /ip proxy access add action=deny disabled=no dst-host=yahoo.com/ip proxy access add action=deny disabled=no dst-host=www.yahoo.com |
Howto Block Downloading via File EXTENSION Types
You can block Downloading by file types using following code,
1
| /ip proxy access add path=*.mp3 action=deny |
Howto Block OPEN PROXY
Please Make sure You are not running your proxy in OPEN PROXY mode, If so any one cane use your proxy service over the internet, and can use perform any illegal activity and your proxy IP will be logged at remote server, So Block it immediately.Use the following.
1
2
| /ip firewall filteradd action=drop chain=input comment="Block Open PROXY <img src="http://s0.wp.com/wp-includes/images/smilies/icon_smile.gif?m=1129645325g" alt=":)" class="wp-smiley"> Zaib" disabled=no dst-port=8080 in-interface=wan protocol=tcp src-address=0.0.0.0/0 |
Howto Add LOGO and Edit Proxy Default ERROR Pages
Goto IP > WEB PROXYClick on RESET HTML
It will ask you that “Current html pages will be lost ! Reset anyway?” CLick on YES
As shown in the image below . . .
,
Now goto FILES and you will see webproxy/error.html ,
As shown in the image below . . .
Just copy this error.html file to your desktop and edit it using your favorite html editor.
(I personally use MS FRONTPAGE 2003 due to its easy and user friendly interface, You can use notepad to edit this file content as its very small and contains basic text only. just don’t mess with the codes, only change the text you want, for example network name support numbers etc. after saving , upload it back to Mikrotiok under web-proxy section.)
Howto Block Web Site for Single User
To block any website for a single user , Use the following …
1
2
3
| /ip proxy accessadd action=deny comment="Block yahoo for single user" disabled=no dst-host=www.yahoo.com src-address=192.168.2.5(192.168.2.5 is the user ip) |
1
2
| /ip proxy accessadd
action=deny comment="Block yahoo for single user" disabled=no
dst-host=www.yahoo.com redirect-to=192.168.2.3/policy/deny.htm
src-address=192.168.2.5 |
As shown in the image below . . .
.
.
Regard’s
Naveed Ahmad
